Home > Products > Stainless Steel Wire Mesh

Stainless Steel Mesh

Stainless Steel Wire Mesh can be divided into stainless steel plain-woven wire mesh, stainless steel twill woven wire mesh, stainless steel three Heddie wire mesh, stainless steel three Heddie wire mesh.
Stainless steel wire mesh products Net surface: clean, smooth, small magnetic
Wire Material: 201,302,304,316,304L,316L,321

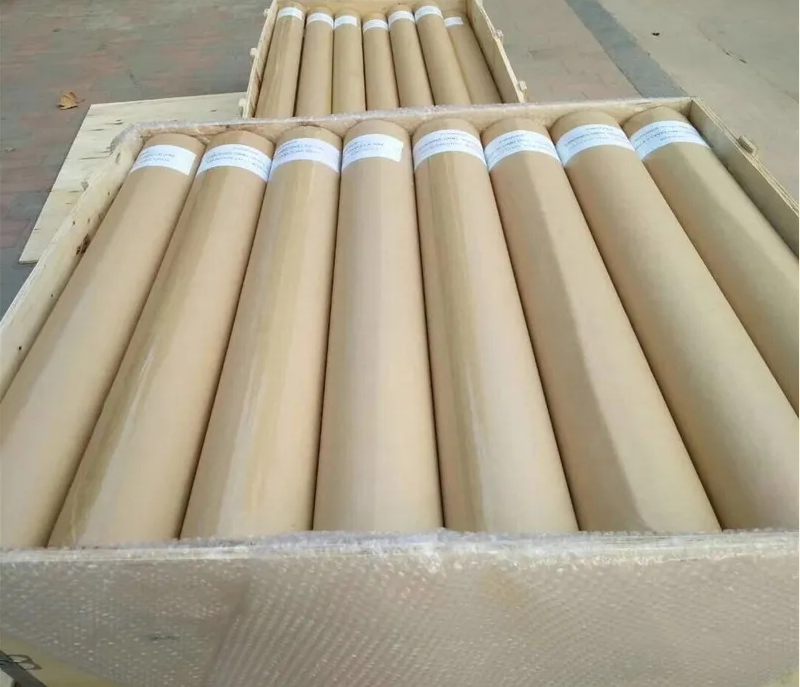

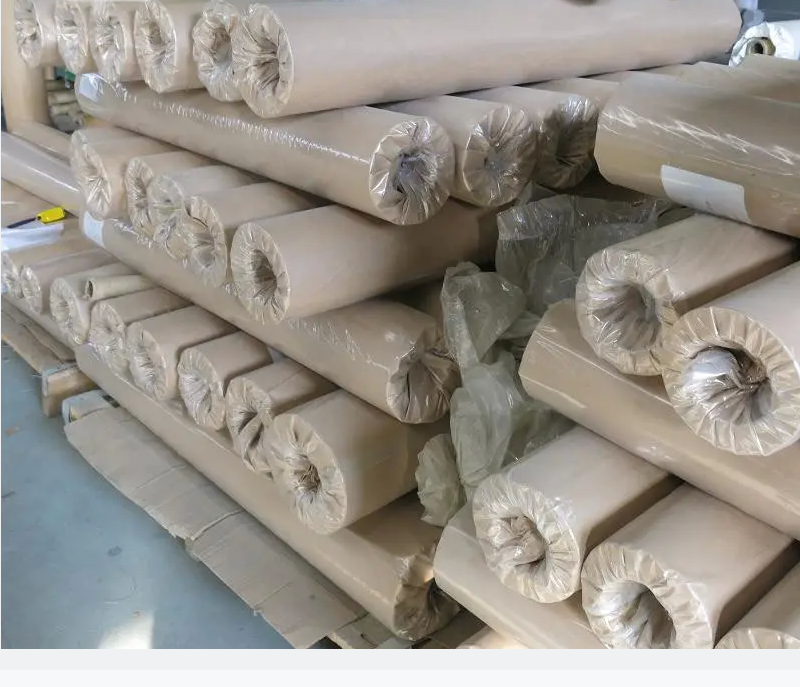

Packing: Water-Proof, Plastic Paper, Wooden Case, Pallet
Stainless Steel Wire Mesh Product Features:
Heat, acid, corrosion resistance, wear resistance. Surface smooth, clean, non-toxic, health, environmental protection.
Stainless steel wire mesh products uses:
Chemicals: acid solution filtration, chemical experiments, chemical particulate filter, gas filter corrosive, caustic dust filtration
Oil: oil purification, oil mud filtration, separation of impurities, etc.
Medicine: Chinese medicine decoction filtration, the solid particulate filtration, purification, and other drugs
Electronics: Circuit board framework, electronic components, battery acid, radiation module
Printing: Ink filtration, carbon filtration, purification, and other toners
Equipment: vibrating screen

Inquire Now Next Product

PRODUCT DESCRIPTION

Stainless Steel Wire Mesh
Mesh/inch	Wire Diameter	Aperture	Mesh/inch	Wire diameter	Aperture
Mesh/inch	(mm)	(mm)	Mesh/inch	(mm)	(mm)
2mesh	1.8	10.9	60mesh	0.15	0.273
3mesh	1.6	6.866	70mesh	0.14	0.223
4mesh	1.2	5.15	80mesh	0.12	0.198
5mesh	0.91	4.17	90mesh	0.11	0.172
6mesh	0.8	3.433	100mesh	0.1	0.154
8mesh	0.6	2.575	120mesh	0.08	0.132
10mesh	0.55	1.99	140mesh	0.07	0.111
12mesh	0.5	1.616	150mesh	0.065	0.104
14mesh	0.45	1.362	160mesh	0.065	0.094
16mesh	0.4	1.188	180mesh	0.053	0.088
18mesh	0.35	1.06	200mesh	0.053	0.074
20mesh	0.3	0.97	250mesh	0.04	0.061
26mesh	0.28	0.696	300mesh	0.035	0.049
30mesh	0.25	0.596	325mesh	0.03	0.048
40mesh	0.21	0.425	350mesh	0.03	0.042
50mesh	0.19	0.318	400mesh	0.025	0.0385
Width of Stainless Steel Wire Mesh: 0.6m-8m

Chemical Composition

(1) 304 stainless steel wire mesh:
High temperature resistance 800℃, with good processing performance, high toughness characteristics, widely
used in industry and furniture decoration industry and food and medical industry

C	Si	Mn	P	S	Ni	Cr	Mo
≤0.08	≤1.0	≤2.0	≤0.045	≤0.03	8.0-10	18.0-20.0	Rem

(2) 316 stainless steel wire mesh:
Its corrosion resistance, atmospheric corrosion resistance and high temperature strength is particularly good,
can be used under caustic conditions;Excellent work hardenability (no magnetic).

C	Si	Mn	P	S	Ni	Cr	Mo
≤0.08	≤1.0	≤2.0	≤0.045	≤0.03	10.0-14.0	16.0-18.0	2.0-3.0

(3) 316L stainless steel wire mesh:
Which is high corrosion resistant than 304 and 316.

C	Si	Mn	P	S	Ni	Cr	Mo
≤0.03	≤1.0	≤2.0	≤0.045	≤0.03	12.0-15.0	16.0-18.0	2.0-3.0

Woven wire mesh baskets
Woven wire mesh architectural grilles
Woven wire mesh display shelves and stands
Woven wire mesh racks
Woven wire mesh liquid filtration
Woven wire mesh air filtration
Woven wire mesh wall reinforcement
Woven wire mesh handrail panel inserts

TAGS: Stainless Steel Wire Mesh Stainless steel filter screen Stainless steel filter screen factory
