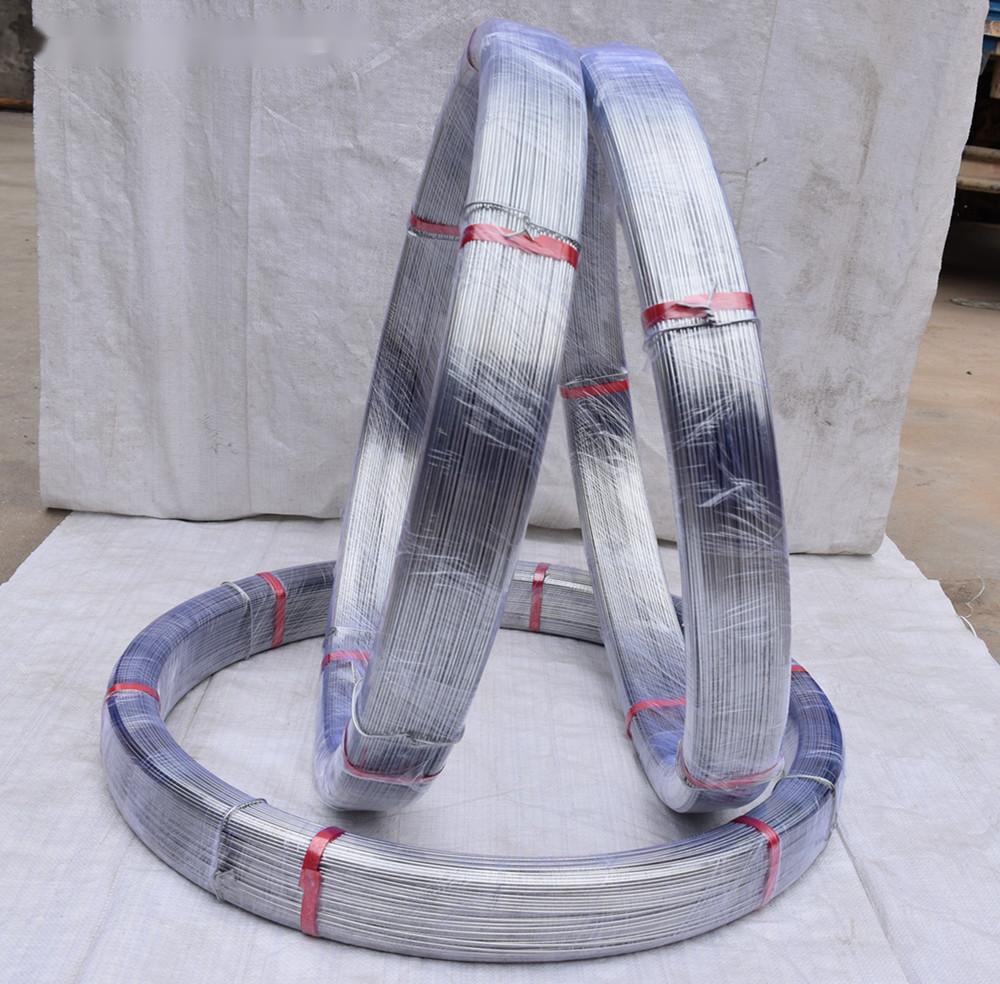

oval high tensile strength wire

Galvanized Oval Wire as high tensile strength structures,which is corrosion, rust resistance, solid, durable and extremely versatile,widely used by landscapers, craft makers, building and constructions, ribbon manufacturers, jewelers and contractors. It is mainly as cattle fence wire to fence cattle farms in special place such as flooded lands,seashore farms, Ellipse, Agriculture, Fencing, Horticulture, Vineyard, Handicrafts, Trellis, and Horticulture structures, etc.
Galvanized Oval Wire is divided into Standard Zinc hot dipped galvanized oval wire and Super Zinc hot dipped galvanized oval wire.

Inquire Now

PRODUCT DESCRIPTION

Specification of Galvanized Oval Wire
	Item Size	Diameter	Min Breaking Load	Zinc Coating	Diameter Tolerance	Coil Length	Coil Weight
Oval High Carbon Steel wire	19/17	3.9*3.0mm	1200KGF	Super 180-210g/m2 Standard 40-60g/m2	±0.06mm	600M	36kg 37kg 43kg 45kg 50kg
	18/16	3.4*2.7mm	900KGF		±0.06mm	800M
	17/15	3.0*2.4mm	800KGF		±0.06mm	1000M/1250M
	17/15	3.0*2.4mm	725KGF		±0.06mm	1000M/1250M
	16/14	2.7*2.2mm	600KGF		±0.06mm	1000M/1250M
	15/13	2.4*2.0mm	500KGF		±0.06mm	1500M
	14/12	2.2*1.8mm	400KGF		±0.06mm	1800M/1900M
Oval Low Carton Iron Wire	N°12	2.4*2.8mm	500Mpa	Min.50g/m2	±0.06mm	465M/580M	25kg
	N°6	4.55*5.25	500Mpa	Min.50g/m2	±0.06mm	170M	25kg
Note:Other specifications also can be customized according to customer's requirements.
